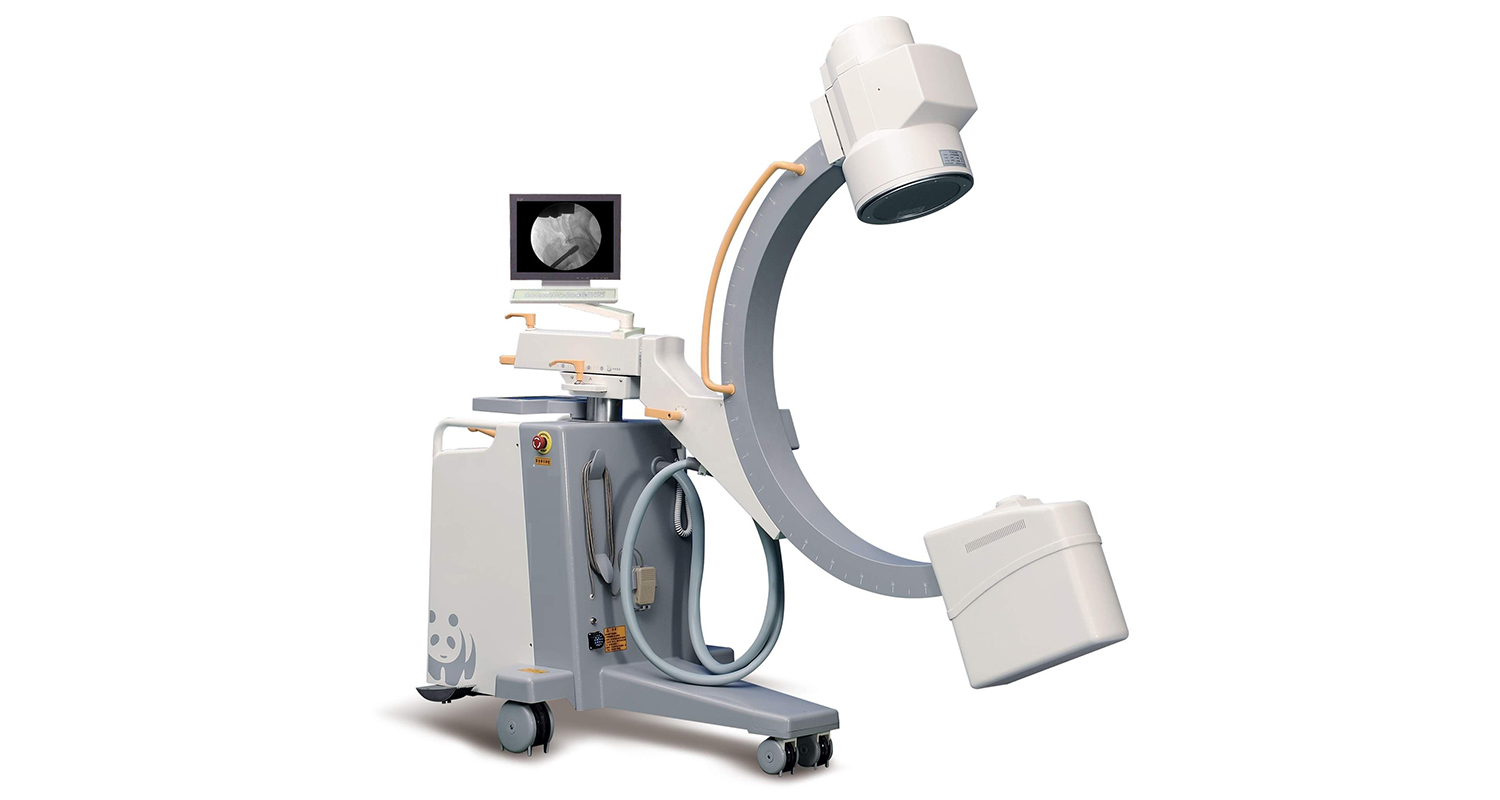

X-Ray Machines
- Home Page
- Products
| Model No. | ADC - HF - 3.5 kW | ADC - HF - 5 kW |
| Power | 220 V / 50Hz, 15 bir±10% | 220 V / 50Hz, 15 bir ± 10% |
| Type generator | 40KHz high frequency | 40KHz high frequency |
| Tube type | dual focus fixed anode | dual focus fixed anode |
| Focal point |
Small focus: 0.6mm x 0.6mm Large focus: 1.5mm x 1.5mm |
Small focus: 0.6mm x 0.6mm Large focus: 1.5mm x 1.5mm |
| Fluoroscopy kVp | 40 - 110kVp (single step) | 40 - 110kVp (single step) |
| Normal fluoroscopy | 0.1 - 3.0 mA | 0.1 - 4.0 mA |
| HD fluoroscopy | 0.1 - 5.0 mA | 0.1 - 8.0 mA |
| Fuoroscopy Timer | Temperature controlled (5 Min. Cumulative) | Temperature controlled (5 Min. Cumulative) |
| Radiographic mAs | Up to 200 mAs. | Up to 200 mAs. |
| Radiographic Timer | Enable an internal Rad timer to show continuously variable mAs for radiography | Enable an internal Rad timer to show continuously variable mAs for radiography |
| Automatic dose rate | ABS control is provided | ABS control is provided |
| Self diagnosis | self-diagnostic errors | self-diagnostic errors |
| Image intensifier | 9" triple filed image intensifier | 9" triple filed image intensifier |
| Camera | High resolution CCD camera, optional 1k X 1K camera | High resolution CCD camera, optional 1k X 1K camera |
| Screen monitor |
2 Nos. Monitors of 17" LED/LCD Optional 1 No. 32" LED/LCD |
2 Nos. Monitors of 17" LED/LCD Optional 1 No. 32" LED/LCD |
| Memory | IR remote support with LIH with 100 frames images memory. Carrying external USB drives | IR remote support with LIH with 100 frames images memory. Carrying external USB drives |
| C-kol Mechanicals | |
| axial rotation | ± 180 ° |
| II distance to source | 900mm |
| Arc Orbital movement | 200mm |
| Arc-depth | 640mm |
| Horizontal Movement | 200mm |
| Vertical Movement | 400mm |
| Rotary range | ±12.5° |
| Cearance | 775mm |
| Lateral movement | steering arm |
| Locking mechanism | C-arm for all manual movement of locks |
As Elzuhur Group, we manufacture all our medical devices specially in our factory, our products with 90% locality stand out as our national pride.
Our factory produces dozens of kinds of devices, which it gives priority to with full capacity.
The first quality products we produce are also exported to the whole world.
It continues production with 38 years of production experience and the belief of the first day.
With HF & HV generators, inverter and high quality image intensifier, the x ray generator works stably.
It prevents doctors from being harmed by radiation.
10.4 inch LCD Control Panel: easy to use and can be rotated 180 degrees.
You can quickly adjust the direction while moving with the lever on the device. It can also run in parallel.
It has blocks that prevent the accident when the machine moves.
It has a multifunctional medical vacuum pad.
