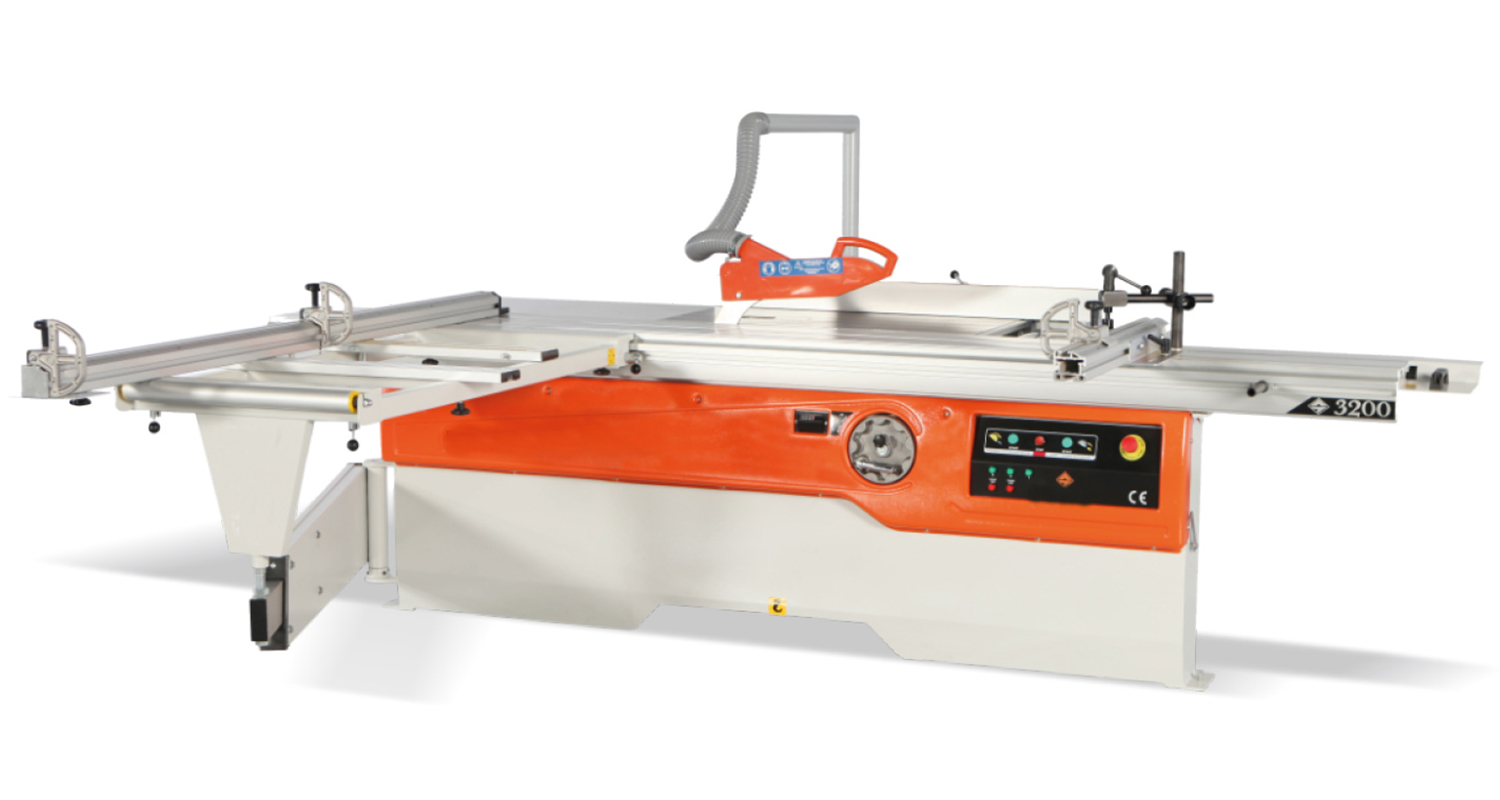

Reclining Flat Machines

  1. Home Page
  2. Products
Reclining Flat Machines
TECHNICIAL SPECIFICATIONS
SLIDE LENGTH

2200 mm

CIRCULAR SAW DIAMETER

300 mm

CIRCULAR SAW SHAFT DIAMETER

30 mm

MAX. CUTTING HEIGHT (Ø300MM)

78 mm

MAX. CUTTING HEIGHT IS AT 45° POSITION

55 mm

MAX. CUTTING WIDTH

1300 mm

MAX. CUTTING WIDTH

2200 mm

TABLE SIZE

950x600 mm

ADDITIONAL TABLE SIZE-REAR TABLE

950x750 mm

ADDITIONAL SIDE TABLE SIZE

800x500 mm

PROFILE CAR SIZE

1530x650mm

CIRCULAR SAW LEAN ANGLE

0° - 45°

DUST SUCTION CONNECTION

120 mm

MOTOR POWER

4 kW

CIRCULAR SAW SPEED

3700 -5100 rpm 3

NET WEIGHT

640 kg.



SCRATCHING FEATURES
CIRCULAR SAW DIAMETER

125 mm

CIRCULAR SAW SHAFT DIAMETER

20 mm

CIRCULAR SAW SPEED

7250 rpm

MOTOR POWER

0,75 kW

CUT LENGTH

2200 mm

Excellent Cutting Performance
CNC Machines; It provides maximum efficiency with low investment cost. Thanks to CNC Machines, cutting problems will be reduced to a minimum.
International Standard
It offers a more durable and long-term working opportunity with equipment manufactured from quality materials, which are globally accepted with international standards.
Aluminum Slide
8 National Aluminum Slide System
Automation System
System with 24V DC automation

Horizontal Circular Machines, which are preferred by both amateur and professional users, provide ease of use thanks to their precision cutting technology and flexibility. It offers maximum performance with its innovative details and customization structure.

It brings quality and speed to your works with its high precision, long life and service activities, and carries customer satisfaction to the highest level.
