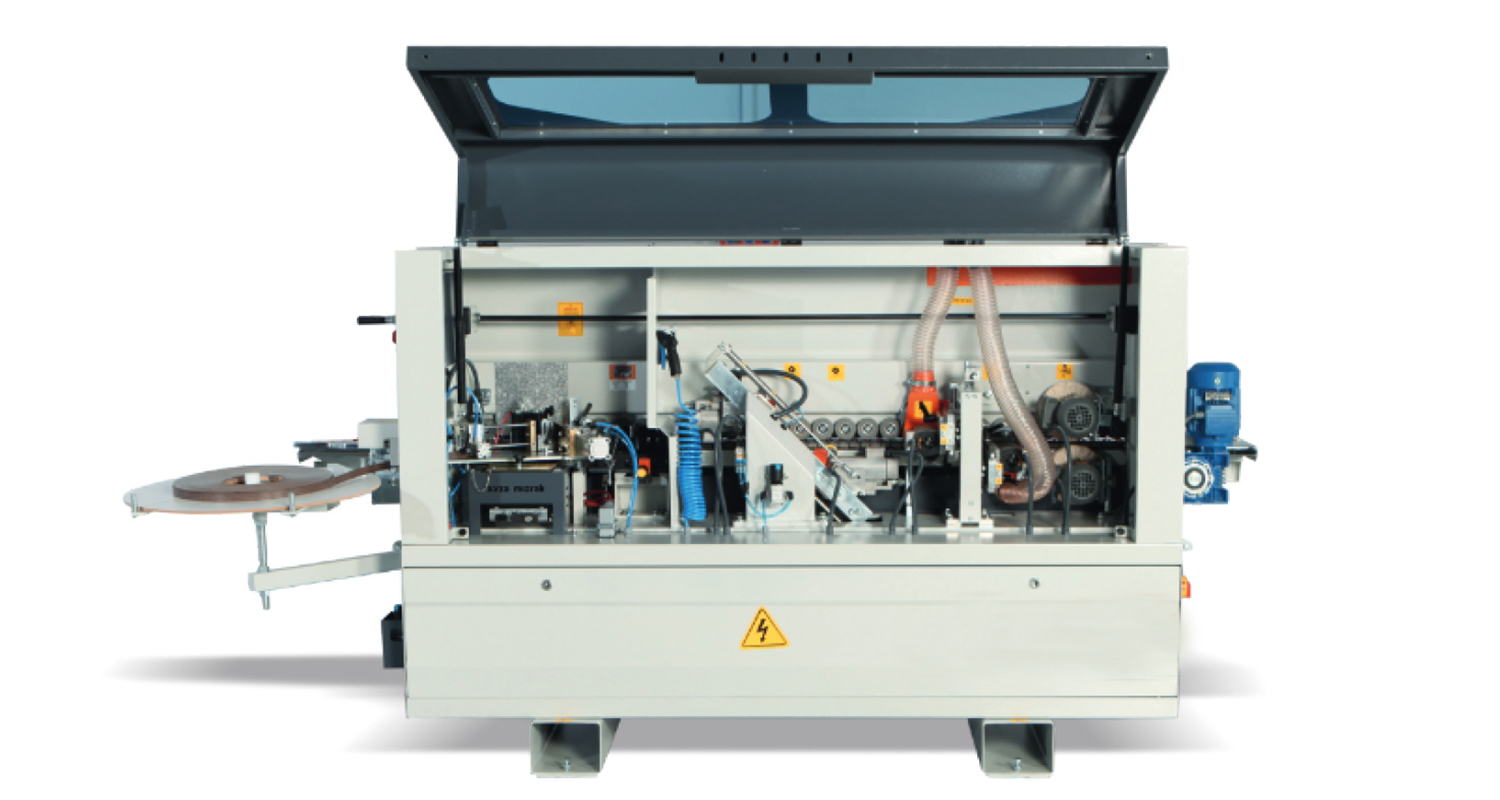

Edge Banding Machines
- Home Page
- Products
| TECHNICIAL SPECIFICATIONS | |
| VOLTAGE |
380/400V – 50/60Hz |
| FLOW |
32 A |
| TAPE THICKNESS |
0,4 – 3 mm |
| WORKPIECE THICKNESS |
8 – 45 mm |
| WORKING SPEED |
12 m/min |
| PALLET MOTOR POWER |
1,5 kW |
| POWER |
5 kW |
| AIR PRESSURE |
6 Bar |
| GLUE BOX CAPACITY |
4 Lt |
| GLUE HEATING SPEED |
15 – 20 min. |
| HEAD-END CUTTING MOTOR |
2x0,45kW 10500rpm |
| MILLING MOTOR |
2x0,55kW 15000rpm |
| LENGTH |
3350 mm |
|
WIDTH |
1020 mm |
| HEIGHT |
1509 mm |
| WORKING HEIGHT |
900 mm |
| WEIGHT |
850 kg |
High Working Precision
Thanks to its structure, it provides easy use and thanks to its comfortable adjustment panel, it helps you to get quality results.
High Quality Products
It is designed to respond to the demands of quality-oriented manufacturers.
Increases experiences in Edge Banding processes thanks to its technological structure; It offers speed and security together. It is used effectively in many materials such as MDF and Chipboard.
It offers a professional process solution by combining high precision and linearity, and it will not let you down with its unlimited spare parts support.
It brings quality and superior performance to your businesses with automation systems that comply with European standards.
