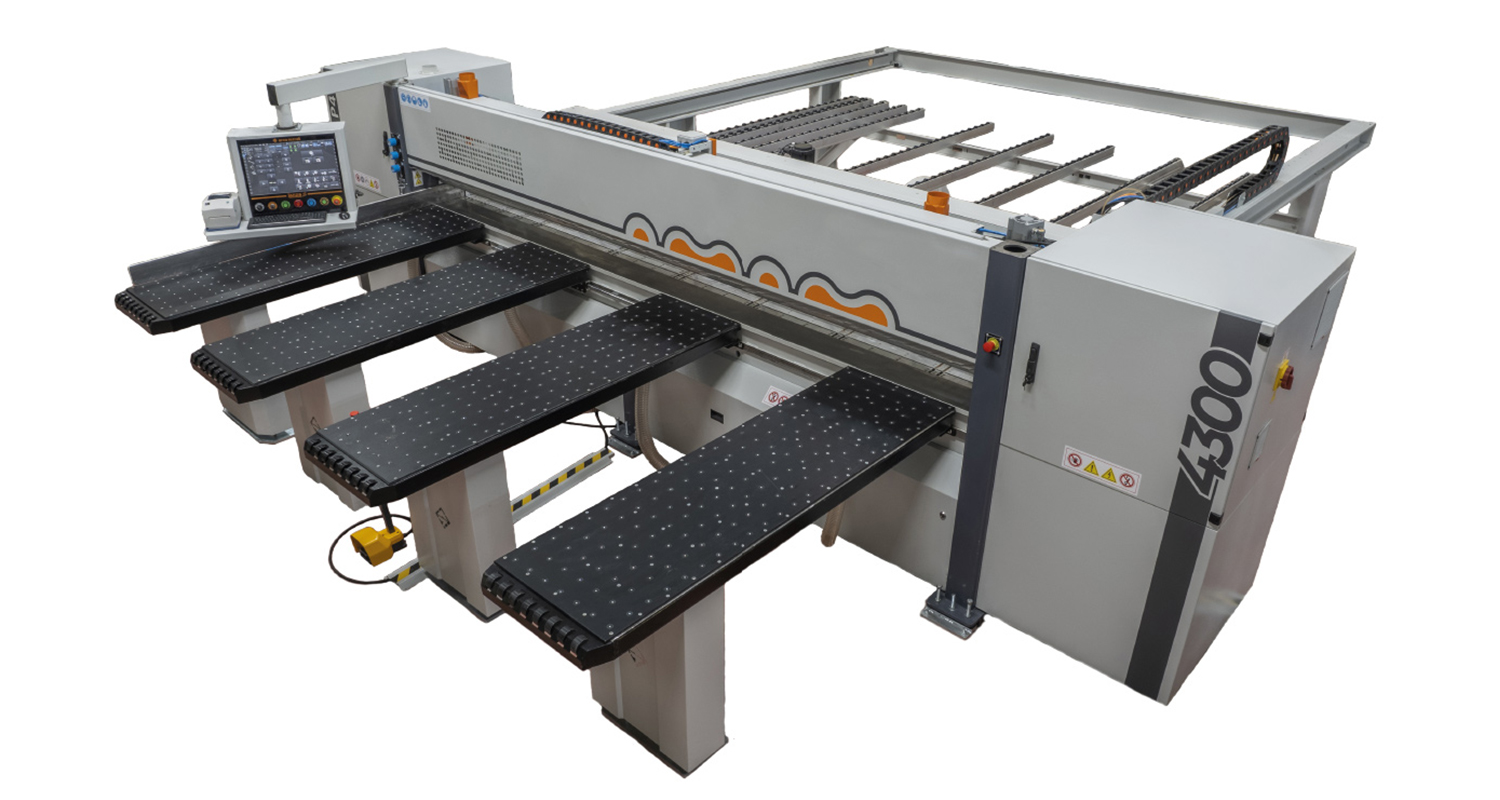

Sizing Machines
TECHNICIAL SPECIFICATIONS
MAINS VOLTAGE

400V-50Hz

TOTAL ELECTRICITY

11 kW

RATED CURRENT

40 A

AIR PRESSURE

6 Bar

CUTTING WIDTH

4300 mm

DEPTH OF CUTTING

4400 mm

KESME YÜKSEKLİĞİ

65 mm

WORKING SPEED BREAKER GROUP FORWARD-BACK

2-60 m/dk

WORKING SPEED REAR GUARD FORWARD-BACK

50 m/dk

CUTTING SAW MOTOR POWER

7,5 kW/10 HP

SCRATCH SAW MOTOR POWER

2.2 kW/3 HP

CUTTING SAW CYCLE

4400 dev/dk



SAW DIMENSIONS
CUTTER

320×4.4/3.2×65 Z72

SCRIBE

180×4.4/3.5×65 Z36

DUST SUCTION PIPE DIAMETER

100 mm (x2)

MACHINE DIMENSIONS

6565x7670x2000 mm

MACHINE WORKING AREA

51 m2 (7.67×6.56)

CRADLE SERVO MOTOR

1.5 kW

PUSHER SERVO MOTOR

1.5 kW

MACHINE WEIGHT

4950 kg

Strong Working Performance
With its strong body structure, it provides trouble-free and high performance production even under the most difficult conditions.
Strong Working Line with Steel Parts
With steel sub-bases, it can work meticulously even in all sensitive works.
Easy Operation
It provides a comfortable use with its 4 pieces of air-floating and one of its movable table design.
Saving Machine
It offers the highest level of efficiency during production and saves you time.
Barcode System
With the barcode system, it will now be easier for you to separate the products and will reduce the margins of error and risks to a minimum.

Horizontal Circular Machines, which are preferred by both amateur and professional users, provide ease of use thanks to their precision cutting technology and flexibility. It offers maximum performance with its innovative details and customization structure.

It brings quality and speed to your works with its high precision, long life and service activities, and carries customer satisfaction to the highest level.
